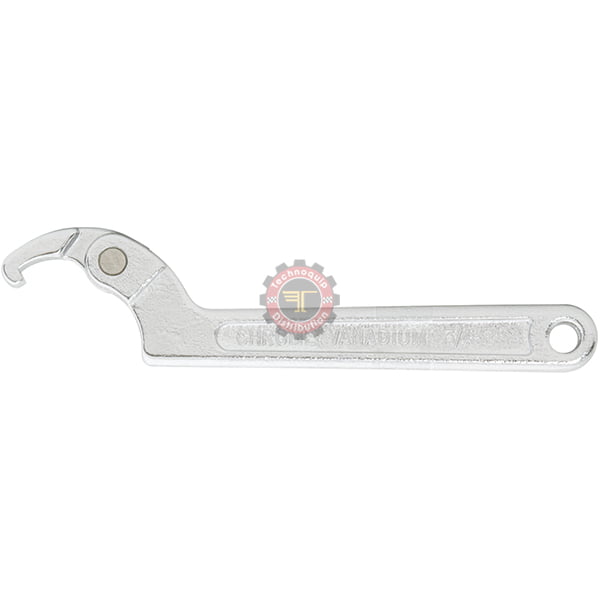

Clé articulée à ergot
د.ت 98,000 – د.ت 173,000 HT
- Application en général : pour écrous à gorge
- Matériel1 : acier au chrome vanadium le plus fin, finition mate
- Norme: DIN 1810 Forme A

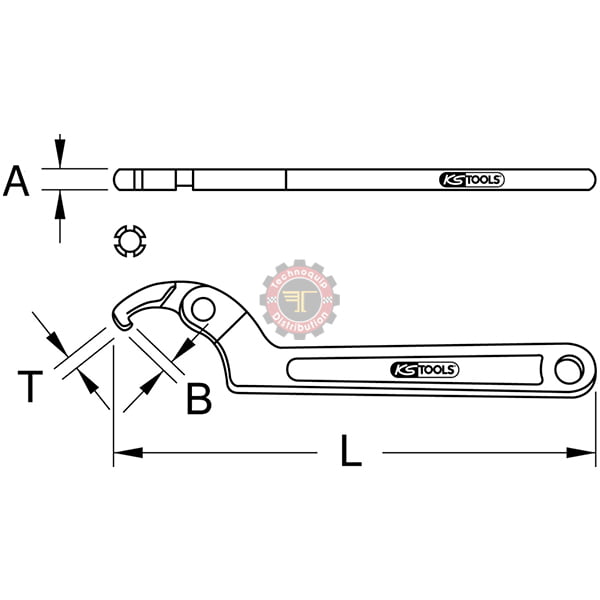

Dimension clé articulée à ergot
| N° d'article | Ouverture de la mâchoire en mm | Longueur totale L en mm | Diamètre du nez B en mm | Profondeur T en mm | Hauteur de tête (A) | Ouverture de la mâchoire en pouces |
| 517.1302 | 19-50 | 162,0 | 3.5 | 2.9 | 9.0 | 3/4-2 |
| 517.1303 | 32-76 | 205,0 | 4.5 | 3.7 | 11,5 | 1.1/4-3 |
| 517.1304 | 50-120 | 295,0 | 6.5 | 4.6 | 12.4 | 2-4.3/4 |
Clé articulée à ergot
- Conforme à la norme DIN 1810 forme A
- Avec tête flexible
- Avec trou de suspension
- Pour écrous fendus
- Finition mat
- Chrome vanadium
| Marque | |
|---|---|
| dimensions |
19-50 MM ,32-76 MM ,50-120 MM |
