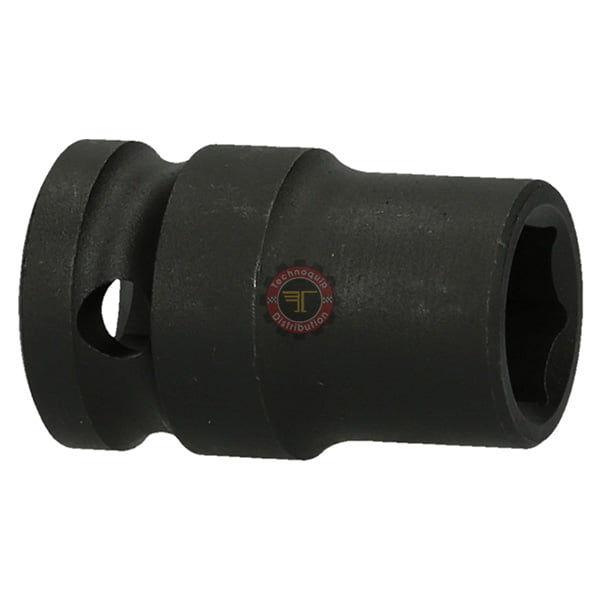

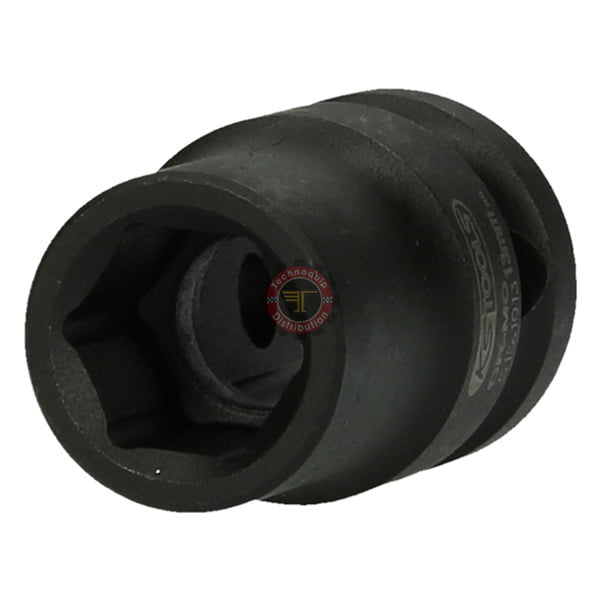

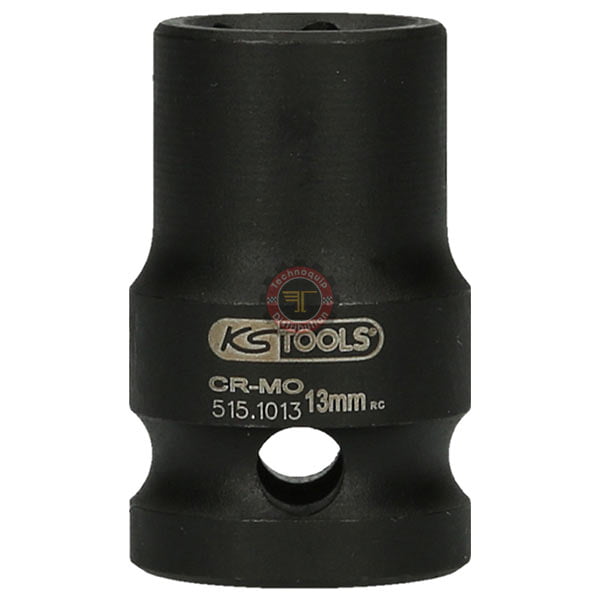

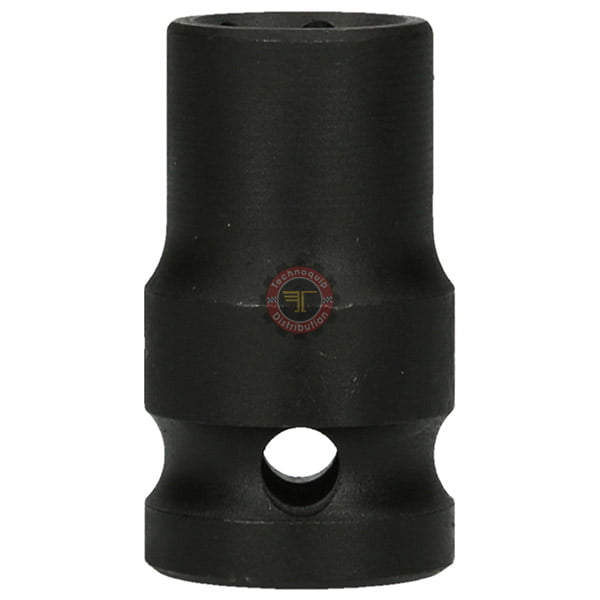

Douille à chocs 6 pans 1/2”
د.ت 20,000 – د.ت 28,500 HT
- Conduire en pouces : 1/2″
- Matériel1 : meilleur acier au chrome molybdène
- Norme: ISO 1174, DIN 3129, ISO 2725-2, DIN 3121
- profil1 : 6 visages

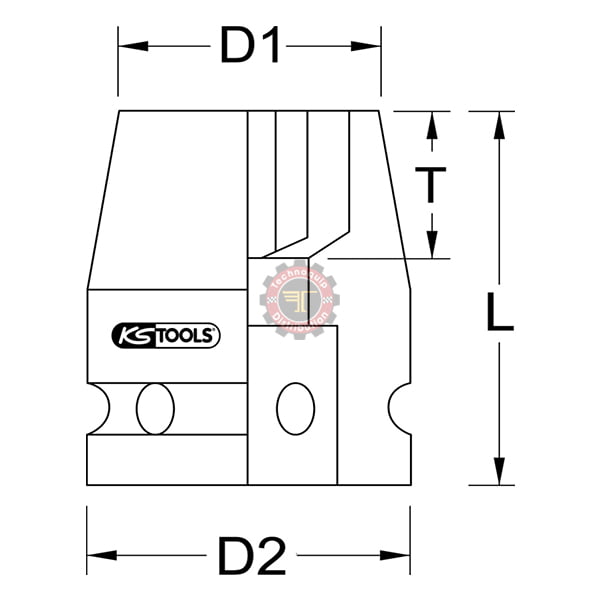

Dimension douille à chocs 6 pans 1/2''
| N° d'article | Ouverture de la mâchoire en mm | Diamètre D1 | Diamètre D2 | Poids [g] | Longueur totale L en mm | Profondeur T en mm |
| 515.1013 | 13,0 | 21,0 | 24,0 | 67 | 38,0 | 10,0 |
| 515.1017 | 17,0 | 26 | 26,0 | 89 | 38,0 | 12,0 |
| 515.1019 | 19,0 | 28,0 | 28,0 | 100 | 38,0 | 13.0 |
| 515.1021 | 21,0 | 30,0 | 30,0 | 125 | 38,0 | 14,0 |
| 515.1024 | 24,0 | 34,0 | 30,0 | 138 | 38,0 | 15,0 |
| 515.1027 | 27,0 | 38,0 | 30,0 | 158 | 42,0 | 18,0 |
Douille à chocs 6 pans 1/2”
- Selon DIN 3129 / ISO 2725-2
- Carré interne selon DIN 3121 / ISO 1174
- Exécution courte
- Pour l’utilisation des machines
- Finition phosphatée
- Chrome molybdène
| Marque | |
|---|---|
| dimensions |
13 mm ,17 mm ,19 mm ,21 mm ,24 mm ,27 mm |
