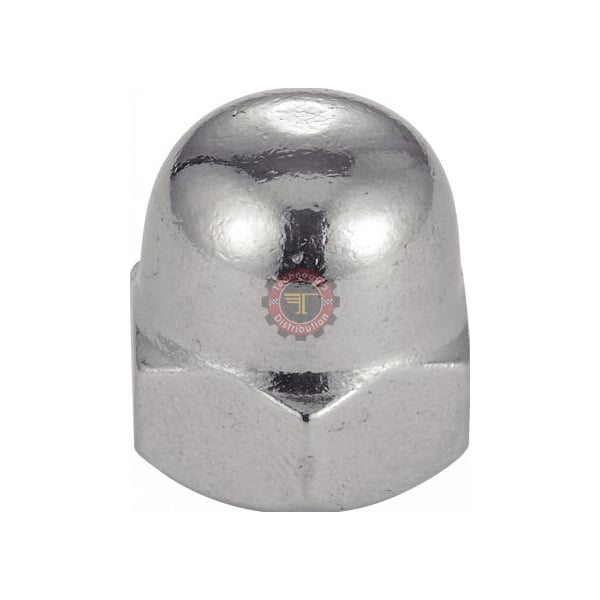

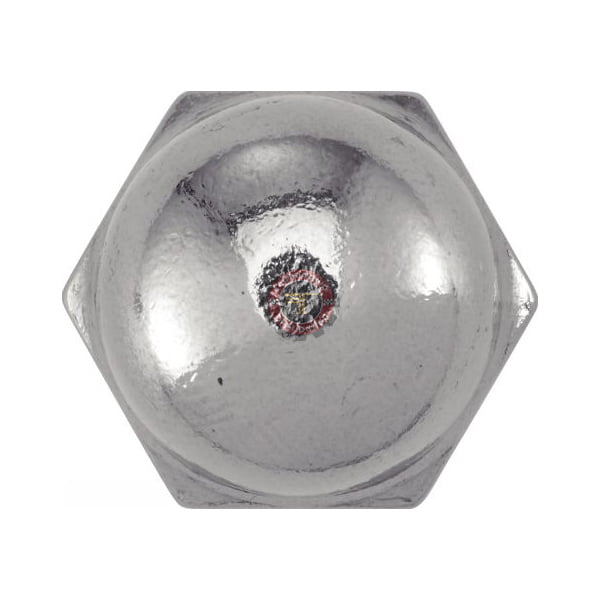

Ecrou borgne Inox A2 – DIN 1587
د.ت 24,000 – د.ت 124,000 HT
- Conditionnement : vendu par paquet de 200 pièces sauf M10 par 100 pièces
- Matière : Inox A2
- Norme :DIN 1587

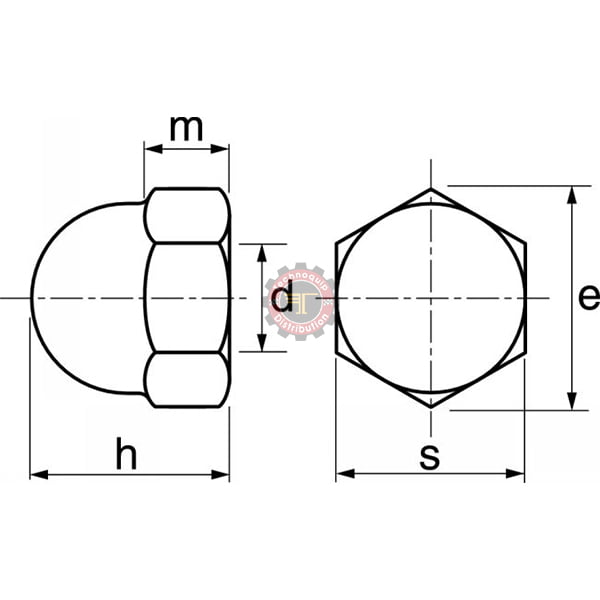

Caractéristique Ecrou borgne Inox A2 - DIN 1587
| d nominal (mm) | Pas (mm) | h (mm) | e(mm) | m(mm) | s(mm) |
| M 4 | 0,7 | 8 | 7,66 | 3,2 | 7 |
| M 5 | 0,8 | 10 | 8,79 | 4 | 8 |
| M 6 | 1 | 12 | 11,05 | 5 | 10 |
| M 8 | 1,25 | 15 | 14,38 | 6,5 | 13 |
| M 10 | 1,5 | 18 | 18,9 | 8 | 17 |
Ecrou borgne Inox A2 – DIN 1587
Cet écrou borgne peut être associé à une vis à métaux DIN 933 ou à une vis à métaux DIN 931 et à une rondelle plate moyenne type M NFE 25513-25514
| Marque | |
|---|---|
| dimensions |
M10 ,M4 ,M5 ,M6 ,M8 |
