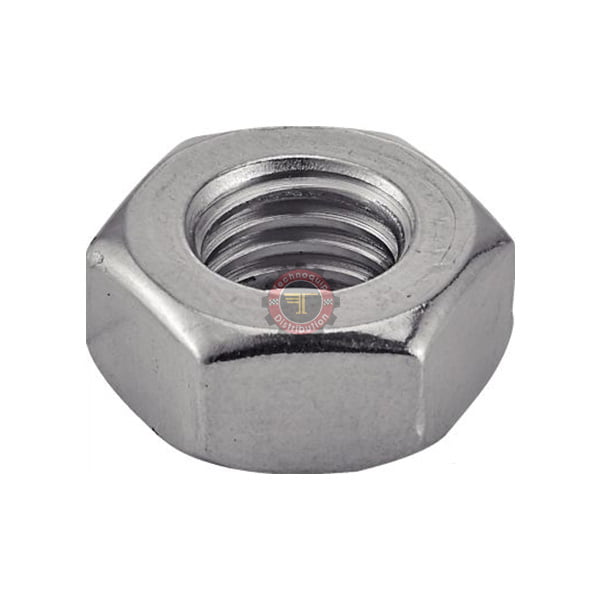

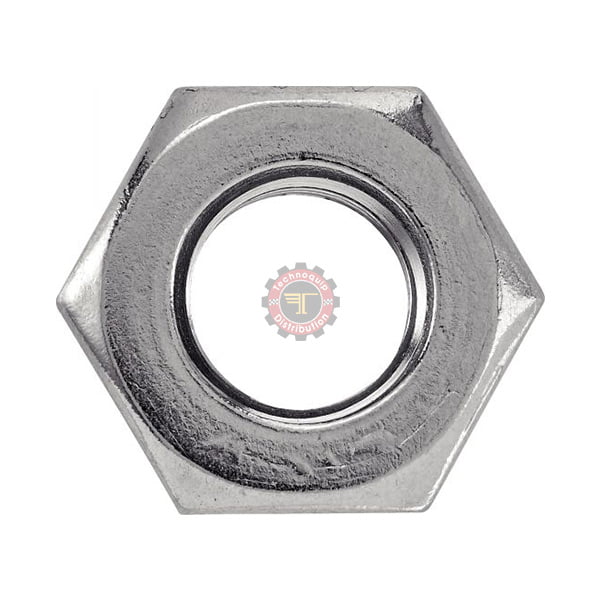

Écrou hexagonal Inox A2 – DIN 934
د.ت 6,200 – د.ت 199,000 HT
- Conditionnement: vendu par paquet de 200 pièces jusqu’à M8 – 100 pièces jusqu’à M12 – 50 pièces jusqu’à M18 – 25 pièces jusqu’à M24- 10 pièces jusqu’à M39
- Ecroux Hexagonaux (ECR HU h80)
- TYPE “H”
- Matière : Inox A2
- Norme : DIN 934

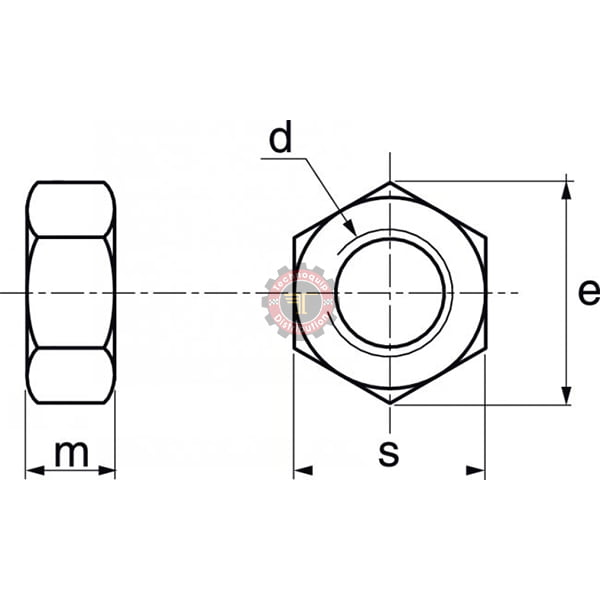

Caractéristique Écrou hexagonal Inox A2 - DIN 934
| d nominal (mm) | Pas (mm) | e(mm) | m(mm) | s(mm) |
| M 3 | 0,5 | 6,01 | 2,4 | 5,5 |
| M 4 | 0,7 | 7,66 | 3,2 | 7 |
| M 5 | 0,8 | 8,79 | 4 | 8 |
| M 6 | 1 | 11,05 | 5 | 10 |
| M 8 | 1,25 | 14,38 | 6,5 | 13 |
| M 10 | 1,5 | 18,9 | 8 | 17 |
| M 12 | 1,75 | 21,1 | 10 | 19 |
| M 14 | 2 | 24,49 | 11 | 22 |
| M 16 | 2 | 26,75 | 13 | 24 |
| M 18 | 2,5 | 29,56 | 15 | 27 |
| M 20 | 2,5 | 32,95 | 16 | 30 |
| M 22 | 2,5 | 35,03 | 18 | 32 |
| M 24 | 3 | 39,55 | 19 | 36 |
| M 27 | 3 | 45,2 | 22 | 41 |
| M 30 | 3,5 | 50,85 | 24 | 46 |
| M 33 | 3,5 | 50,37 | 26 | 50 |
| M 36 | 4 | 60,79 | 29 | 55 |
| M 39 | 4 | 66,44 | 31 | 60 |
Écrou hexagonal Inox A2 – DIN 934
- l’Écrou hexagonal en Inox A2 – DIN 934 , parfait pour une vis métal ou une tige filetée de même diamètre et de même pas
- Cet écrou peut être associé à une vis métaux DIN 933 ou à une vis métaux DIN 931 et à une rondelle plate moyenne de type M NFE25513
| Marque | |
|---|---|
| dimensions |
M10 ,M12 ,M14 ,M16 ,M18 ,M20 ,M22 ,M24 ,M27 ,M3 ,M30 ,M33 ,M36 ,M39 ,M4 ,M5 ,M6 ,M8 |
