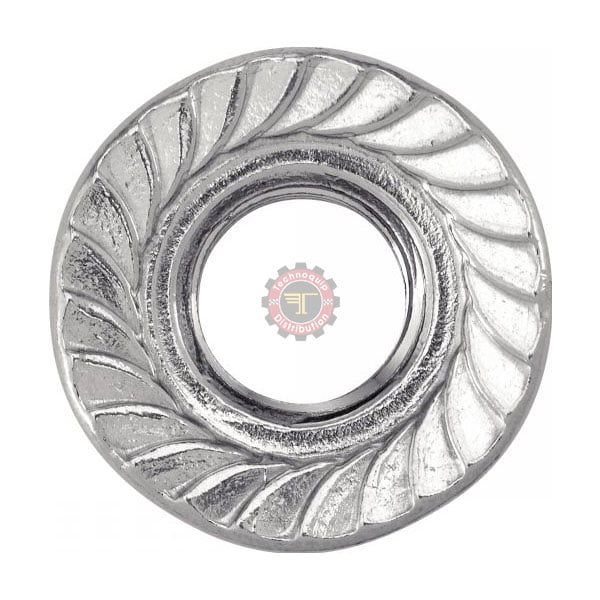

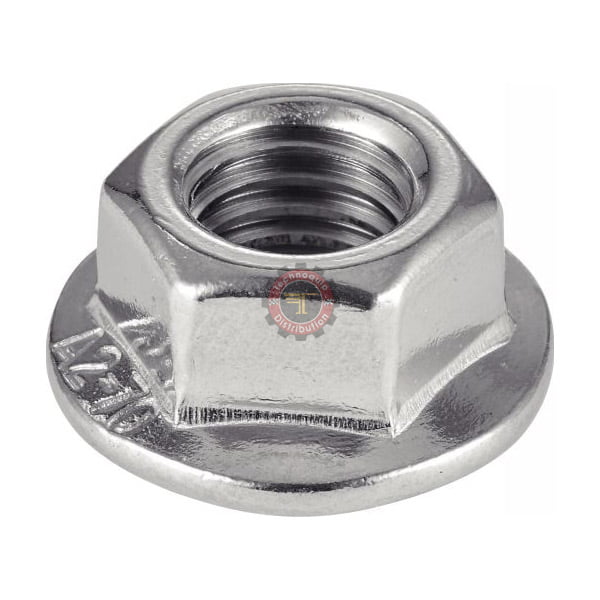

Écrous à embase crantée INOX DIN 6923
د.ت 40,000 – د.ت 120,000 HT
- Conditionnement : vendu par paquet de 200 pièces sauf M10 par paquet de 100 pièces
- Matière : Inox A2
- Norme : DIN 6923
Caractéristique Écrous à embase crantée INOX DIN 6923

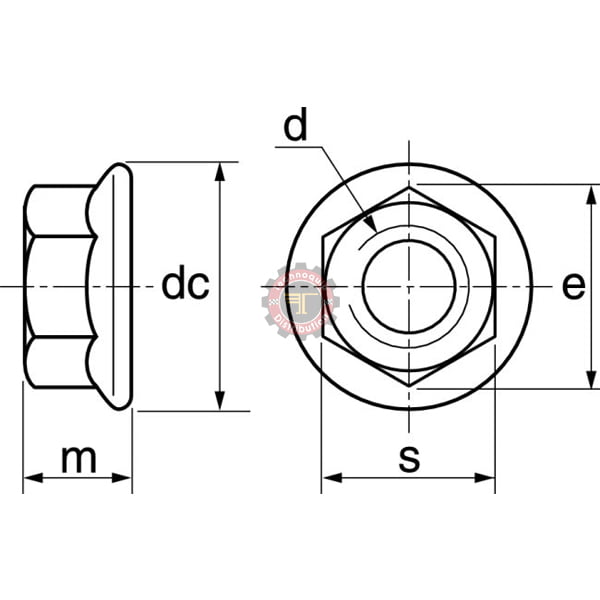

| d nominal (mm) | Pas (mm) | dc(mm) | e(mm) | m(mm) | s(mm) |
| M5 | 0,8 | 11,8 | 8,79 | 5 | 8 |
| M6 | 1 | 14,2 | 11,05 | 6 | 10 |
| M8 | 1,25 | 17,9 | 14,38 | 8 | 13 |
| M10 | 1,5 | 21,8 | 16,64 | 10 | 15 |
Écrous à embase crantée INOX DIN 6923
Cet écrou à embase crantée peut être associé à une vis à métaux DIN 933 ou à une vis à métaux DIN 931 et à une rondelle plate moyenne type M NFE 25513-25514
| Marque | |
|---|---|
| dimensions |
M10 ,M5 ,M6 ,M8 |
