Goujon d’ancrage Inox A4
د.ت 287,500 – د.ت 10.500,000 HT
- Prix des 100 pièces
- Conditionnement : vendu par paquet de 200 pièces jusqu’a M10 -100 pièces jusqu’a M20
- ETA-08/0173
OPTION 1
Non couvert par E.T.A. - Matière : Inox A4

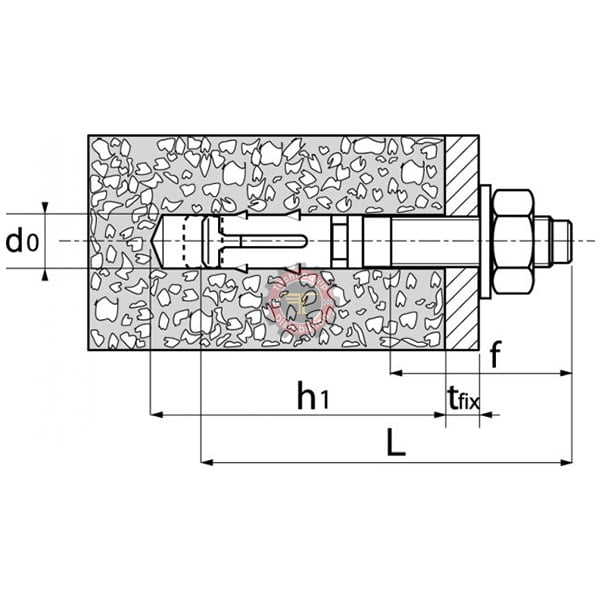

Caractéristique Goujon d’ancrage Inox A4
| d0 X tfix/L (mm) | h1(mm) | f(mm) |
| 8X10/72 | 60 | 32 |
| 8X30/92 | 60 | 52 |
| 10X10/92 | 75 | 47 |
| 10X20/102 | 75 | 57 |
| 10X50/132 | 75 | 87 |
| 12X5/103 | 90 | 53 |
| 12X20/118 | 90 | 68 |
| 12X50/148 | 90 | 98 |
| 16X5/123 | 110 | 65 |
| 16X20/138 | 110 | 80 |
| 16X50/168 | 110 | 110 |
| 20X20/170** | 130 | 55 |

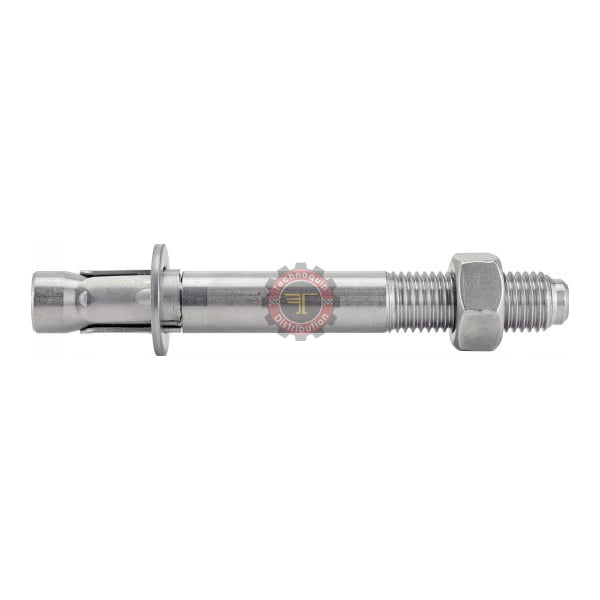

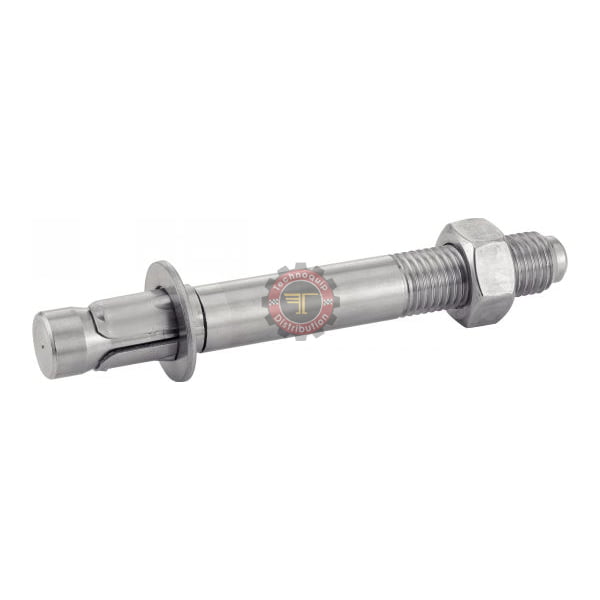

Goujon d’ancrage Inox A4
Le Goujon d’Ancrage en Inox A4 est un système de fixation par expansion pour charges moyennes. Il fixe les structures bois et métalliques.
| Marque | |
|---|---|
| dimensions |
M08-72mm ,M08-92mm ,M10-100mm ,M10-132mm ,M10-92mm ,M12-103mm ,M12-118mm ,M12-148mm ,M16-123mm ,M16-138mm ,M16-168mm ,M20-170mm |
