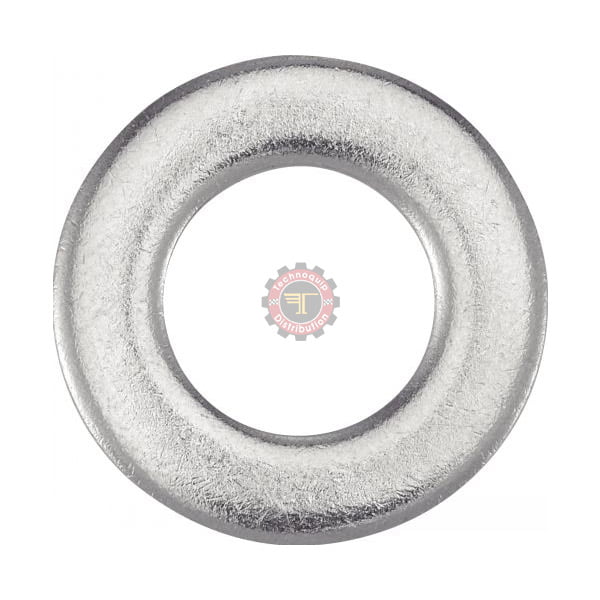

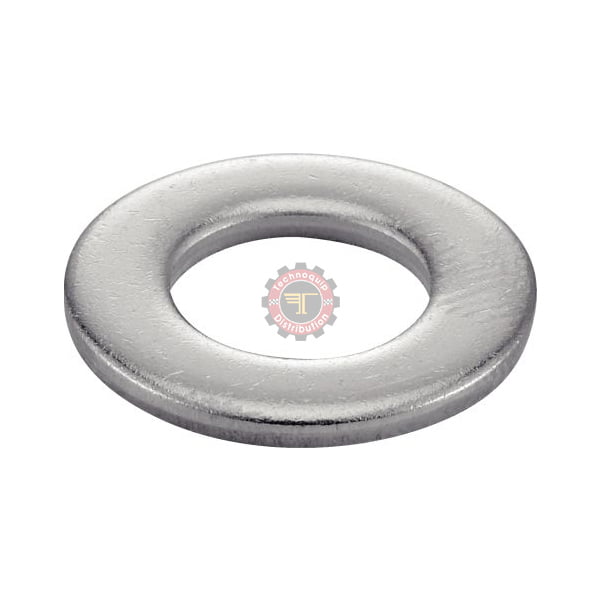

Rondelles plates découpées Inox A2 – DIN 125 A
د.ت 7,000 – د.ت 53,500 HT
- Matière : Inox A2
- Norme : DIN 125 A – (similar ISO 7089)

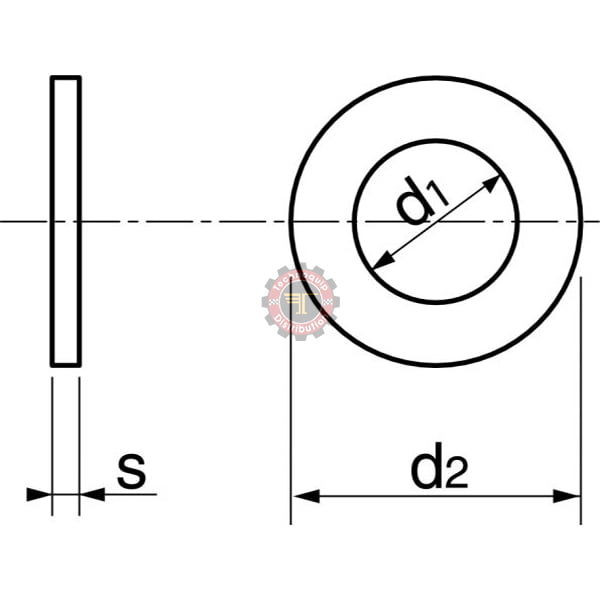

Caractéristique rondelles plates découpées Inox A2 - DIN 125 A
| d nominal (mm) | d1(mm) | d2(mm) | s(mm) |
| 4 | 4,3 | 9 | 0,8 |
| 5 | 5,3 | 10 | 1 |
| 6 | 6,4 | 12 | 1,6 |
| 8 | 8,4 | 16 | 1,6 |
| 10 | 10,5 | 20 | 2 |
| 12 | 13 | 24 | 2,5 |
| 14 | 15 | 28 | 2,5 |
| 16 | 17 | 30 | 3 |
| 18 | 19 | 34 | 3 |
| 20 | 21 | 37 | 3 |
| 22 | 23 | 39 | 3 |
| 24 | 25 | 44 | 4 |
| 27 | 28 | 50 | 4 |
| 30 | 31 | 56 | 4 |
| 33 | 34 | 60 | 5 |
| 36 | 37 | 66 | 5 |
| 39 | 40 | 72 | 6 |
Rondelles plates découpées Inox A2 – DIN 125 A
La rondelle est une pièce mécanique conçue essentiellement pour supporter la pression due à l’utilisation d’une vis.
| Marque | |
|---|---|
| diametres-en-mm |
M10 ,M12 ,M14 ,M16 ,M18 ,M20 ,M22 ,M24 ,M27 ,M30 ,M33 ,M36 ,M39 ,M4 ,M5 ,M6 ,M8 |
