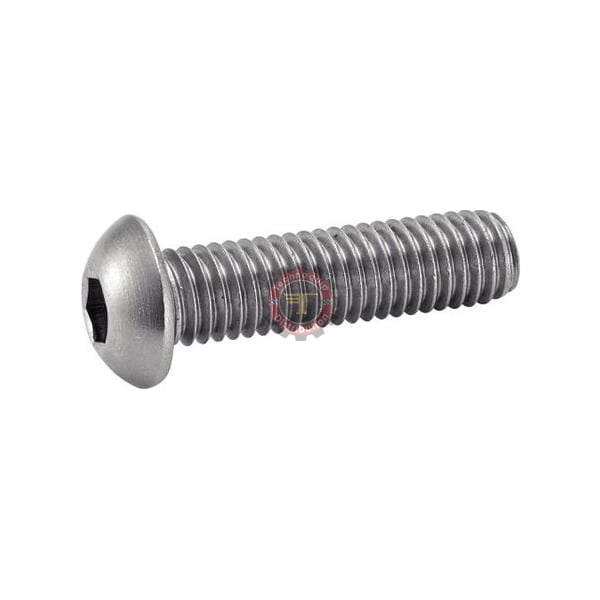

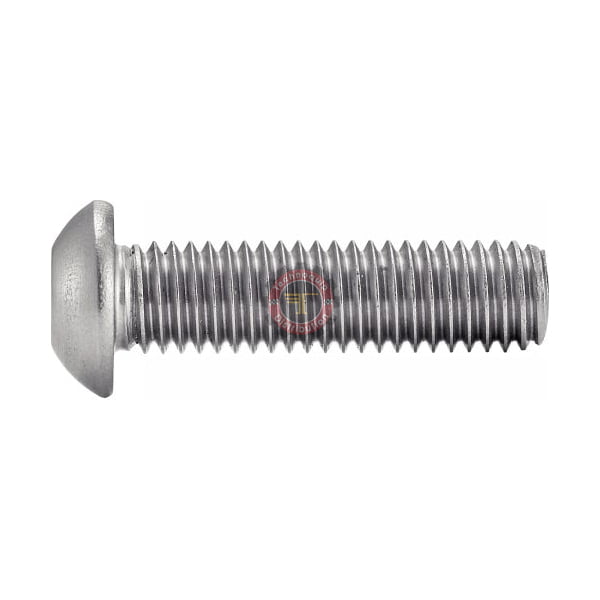

Vis à métaux tête bombée six pans creux
د.ت 18,000 – د.ت 125,000 HT
- Prix des 100 pièces

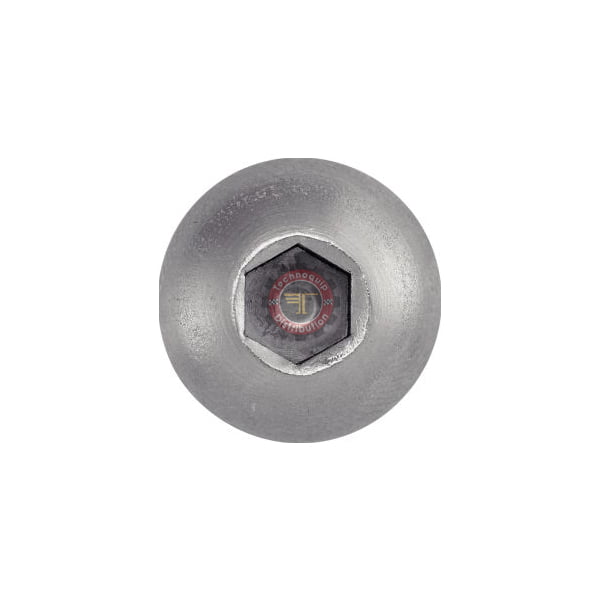

- Tête cylindrique à six pans creux
- Matière : Inox A4
- Norme : ISO 7380

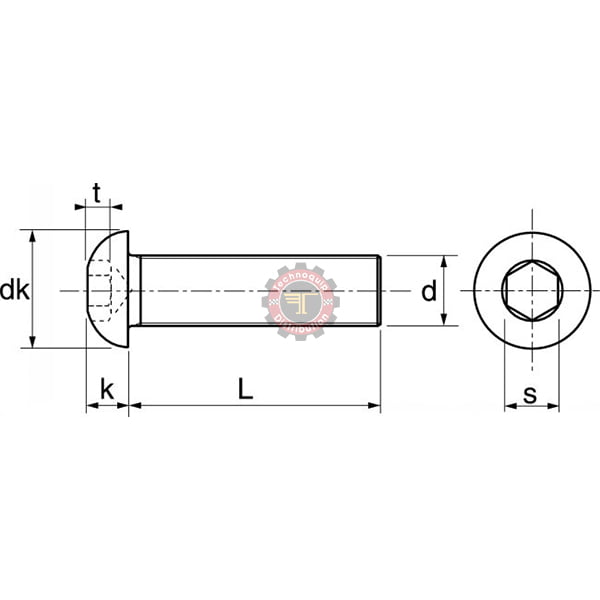

Caractéristique Vis à métaux tête bombée six pans creux
| d(mm) | d X L (mm) | dk(mm) | k(mm) | t(min)(mm) | s(mm) | Pas (mm) |
| M 3 | 3X10 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X12 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X14 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X16 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X18 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X20 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 3 | 3X4 | 5,7 | 1,65 | 1,03 | 2 | 0,5 |
| M 4 | 4X10 | 7,6 | 2,2 | 1,3 | 2,5 | 0,7 |
| M 4 | 4X12 | 7,6 | 2,2 | 1,3 | 2,5 | 0,7 |
| M 4 | 4X12 | 7,6 | 2,2 | 1,3 | 2,5 | 0,7 |
| M 4 | 4X8 | 7,6 | 2,2 | 1,3 | 2,5 | 0,7 |
| M 5 | 5X10 | 9,5 | 2,75 | 1,56 | 3 | 0,8 |
| M 5 | 5X12 | 9,5 | 2,75 | 1,56 | 3 | 0,8 |
| M 5 | 5X16 | 9,5 | 2,75 | 1,56 | 3 | 0,8 |
| M 5 | 5X8 | 9,5 | 2,75 | 1,56 | 3 | 0,8 |
| M 6 | 6X10 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X12 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X16 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X20 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X25 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X30 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 6 | 6X8 | 10,5 | 3,3 | 2,08 | 4 | 1 |
| M 8 | 8X16 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 8 | 8X20 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 8 | 8X25 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 8 | 8X30 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 8 | 8X40 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 8 | 8X50 | 14 | 4,4 | 2,6 | 5 | 1,25 |
| M 10 | 10X20 | 17,5 | 5,5 | 3,12 | 6 | 1,5 |
| M 10 | 10X25 | 17,5 | 5,5 | 3,12 | 6 | 1,5 |
| M 10 | 10X35 | 17,5 | 5,5 | 3,12 | 6 | 1,5 |
Vis à métaux tête bombée six pans creux
Cette vis peut être associée à un écrou hexagonal DIN 934 et à une rondelle plate moyenne de type M NFE25513
| dimensions |
M03-10mm ,M03-12mm ,M03-14mm ,M03-16mm ,M03-18mm ,M03-20mm ,M03-4mm ,M03-8mm ,M04-10mm ,M04-12mm ,M04-16mm ,M04-8mm ,M05-10mm ,M05-12mm ,M05-16mm ,M05-8mm ,M06-10mm ,M06-12mm ,M06-16mm ,M06-20mm ,M06-25mm ,M06-30mm ,M06-8mm ,M08-16mm ,M08-20mm ,M08-25mm ,M08-30mm ,M08-40mm ,M08-50mm ,M10-20mm ,M10-25mm ,M10-30mm ,M12-25mm |
|---|---|
| Marque |
