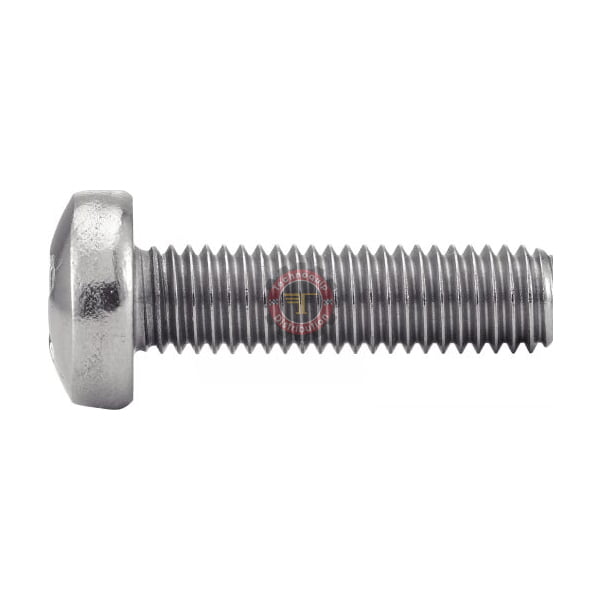

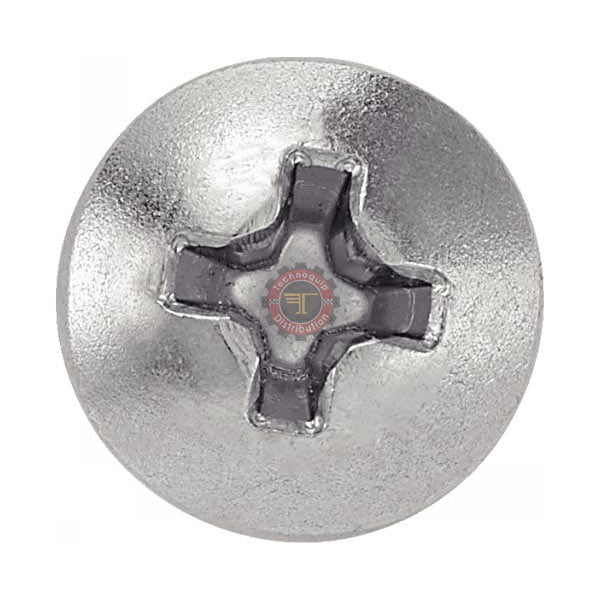

Vis à métaux tête cylindrique pozidrive Inox A2 – DIN 7985
د.ت 10,000 – د.ت 85,000conditionnement HT
- Conditionnement : vendu par paquet de 200 pièces sauf 6X50 mm paquet de 100 pièces
- Matière : Inox A2
- Norme : DIN 7985 – (similar ISO 7045)
Caractéristique Vis à métaux tête cylindrique pozidrive Inox A2 – DIN 7985

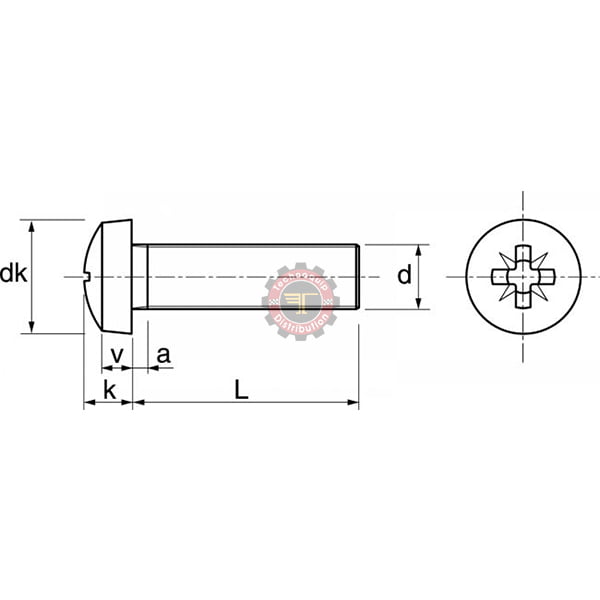

| d(mm) | d X L(mm) | dk(mm) | k(mm) | a(mm) | v(mm) | Empreinte pozidrive | Pas(mm) |
| M 4 | 4X8 | 8 | 3,1 | 1,4 | 2 | 2 | 0,7 |
| M 4 | 4X10 | 8 | 3,1 | 1,4 | 2 | 2 | 0,7 |
| M 4 | 4X30 | 8 | 3,1 | 1,4 | 2 | 2 | 0,7 |
| M 6 | 6X20 | 12 | 4,6 | 2 | 3 | 3 | 1 |
| M 6 | 6X30 | 12 | 4,6 | 2 | 3 | 3 | 1 |
| M 6 | 6X50 | 12 | 4,6 | 2 | 3 | 3 | 1 |
Vis à métaux tête cylindrique pozidrive Inox A2 – DIN 7985
- Vis à Métaux Tête Cylindrique Pozidrive (TC POZI), Inox A2 – DIN 7985
- Cette vis peut être associée à un écrou hexagonal DIN 934 et à une rondelle plate moyenne de type M NFE25513
| Marque | |
|---|---|
| dimensions |
4X10 mm ,4X30 mm ,4X8 mm ,6X20 mm ,6X30 mm ,6X50 mm |
